The Bosch KTS 590  (Esi Software Included) Product information. Supports “Easy Connect” and other Bosch vehicle specific adapters Enhanced measurement... read more




- +



- +

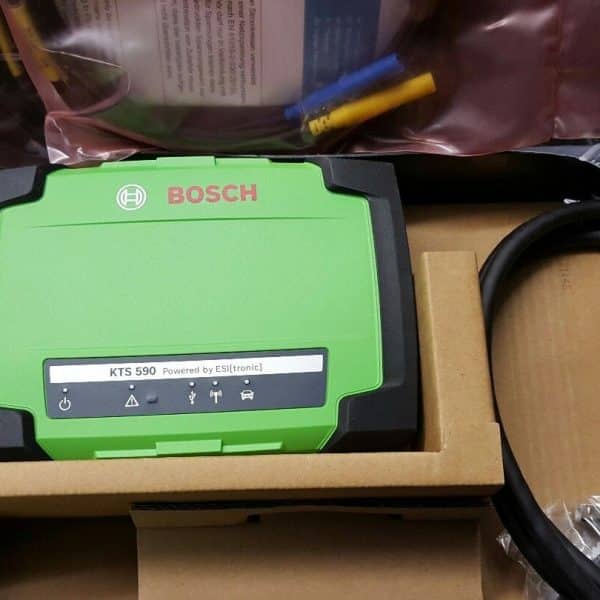

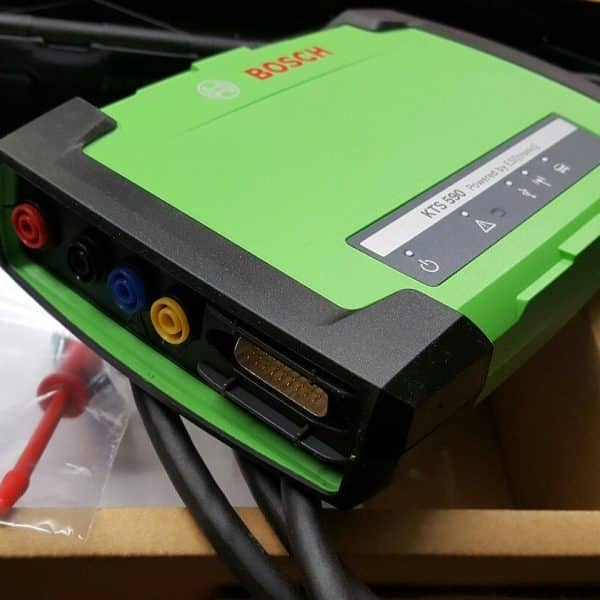

The Bosch KTS 590
 (Esi Software Included)

Product information.

  • Supports “Easy Connect” and other Bosch vehicle specific adapters
  • Enhanced measurement technique included to support diagnosis and vehicle repair
  • Enhanced ECU diagnosis for DoIP (Diagnostics over Internet Protocol) the first product in IAM with this feature
  • Parallel or simultaneous diagnosis possible for a faster overview and reading of values
  • LED display
  • Measuring all actuators and sensors in the vehicle
  • Multimeter measurements during guided trouble-shooting with automatic transfer of measured values
  • Both oscilloscope channels are isolated
  • Sampling rate: 20MS/s
  • Intelligent and future-proof thanks to internal OBD interchangeable adaptor
  • Universal OBD plug: Allows connectivity to vehicles with 14 V and 28 V vehicle electrical systems
  • Clear communication thanks to multiplexer and cable adaptor recognition: K and L line, SAE and CAN can be switched to all possible terminals on the OBD plug
  • Reliable multiplexer actuation
  • Automatic control unit search function
  • Integrated OBD interchangeable adaptor
  • Demo mode allows the 590 to be used without a vehicle connected
  • Resistance measurement with extended measuring ranges
  • Continuity tester for fault localisation
  • Diode measurement for component testing
  • Voltage measurement with enhanced measurement functions
  • Bluetooth Class 1 standard with a range of up to 100 m
  • Fully Passthru compliant
  • Operating systems: Vista Home Premium, Vista Business, Windows 7, Windows 8
  • Powered by ESI[tronic] 2.0
  • 2-channel multimeter & 2-channel oscilloscope

KTS 560 Technical Data

KTS 590

KTS 590

2-channel multimeter & 2-channel oscilloscope
Connections to PC USB 2.0, Bluetooth® Class 1
Weight approx. 0.5 kg
Operating voltage 8V DC-28V DC
Dust and water protection IP53
Multimeter bandwidth 100 kHz
Oscilloscope sampling rate 20 MS/s
Vehicle protocols ISO 15031, ISO 22900, SAE J2534-1 and -2 (PassThru), ISO 9141-2 (K and L), SAE J1850 VPW and PWM, CAN High Speed ISO 11898, ISO 15765-4 (OBD), CAN Single Wire, CAN Low Speed, ISO 13400 (Diagnostics over IP), and other vehicle-specific protocols

KTS 590

Scope of delivery

-OBD connection cable (1.5 m)

-Power supply unit

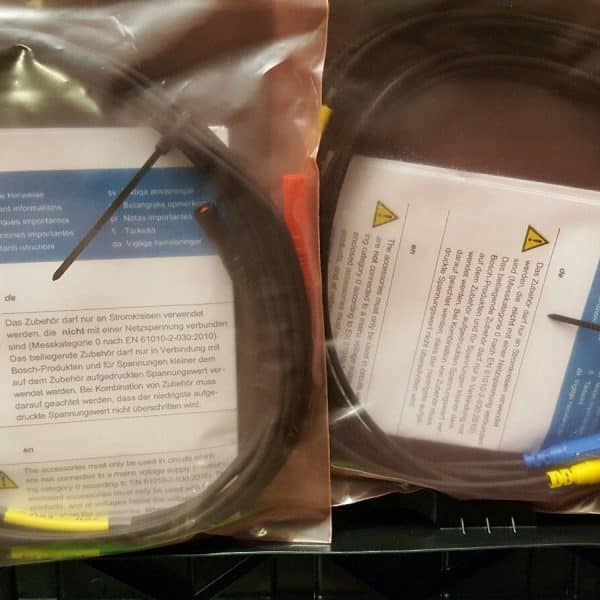

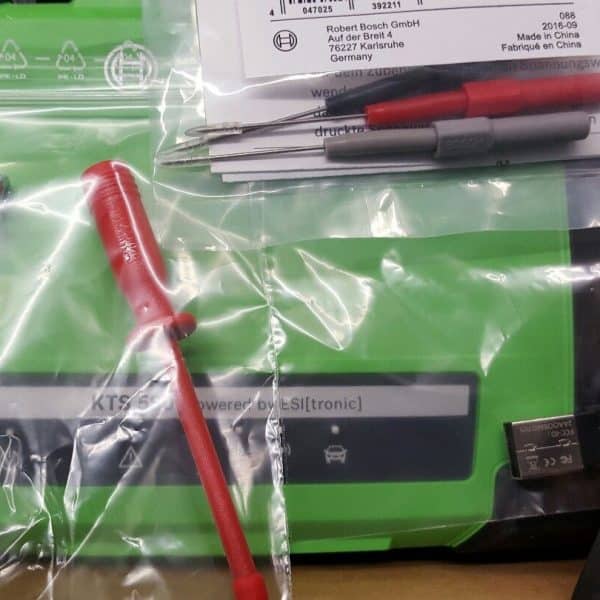

-Test lead/probe set

-USB connecting cable (3 m)

-Trolley mounting parts set

-Bluetooth® USB adaptor

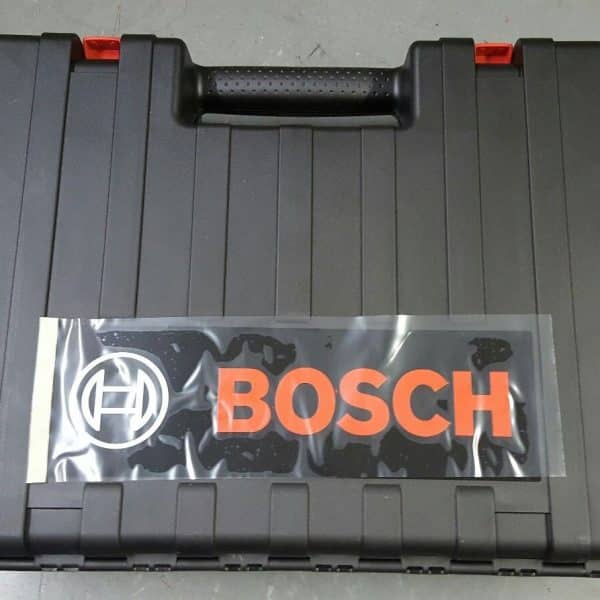

-Storage case

Price is for the hardware only


Is available for 12 months and 36 months periods get in touch for current pricing

OFF-LINE CODING IS ALSO POSSIBLE (online is, per time fee)

All cables are the latest versions with full support.

We are an established company.

Free technical support available by appointment.


All software will be pre-installed for you.
The system is built to order and delivered READY TO USE.

All cables supplied will be brand new.
